Stainless Steel Differential Pressure Gauge Digital Display For Water 4 20mA

Brand Name : YunYi

Model Number : 2088

Place of Origin : China

MOQ : 1set

Price : USD75.0.SET

Payment Terms : T/T, Western Union

Supply Ability : 1000 Piece/Pieces per Month ceramic oil pressure sensor cost

Delivery Time : 7days

Packaging Details : ceramic oil pressure sensor cost Standard export package Port Any ports of China

Warranty : 365 days

Customized support : OEM, ODM, OBM

Pressure range : -0.1 to 0 to 0.01 to 100MPa

Pressure type : Gauge, absolute ,sealed gauge

Accuracy : ±0.25%( Typical) ±0.5%( Max.)

Power supply : 15~30VDC

Output signal : 4~20mA 0~10/20mA 0/1~5VDC

Pressure port : M20*1.5 or customize

Material : Cr18Ni9Ti stainless steel

Protection : IP65

Contact Now

Chian factory 4-20mA pressure transmitter digital display for water

Description:

Digital gauge pressure transmitter for vacuum can be calibrated to ranges as low as 0 to 1.5 psi (0.1 bar) and as high as 0 to 4000 psi (275.8 bar). RS485/RS232 can also be used to measure negative pressure ranges. The 2088 pressure transmitter measurement capabilities enable reliable use in almost any application.

Specification:

Measurement Range -0.1….0~0.01... ~100MPa
Proof pressure ≤1.5X rated pressure or 110MPa which ever is less
Pressure type Gauge, absolute ,sealed gauge
Accuracy ±0.25%( Typical) ±0.5%( Max.)
Long term stability ±0.2%F.S/year
OperatingTemperatureRange -20℃~80℃
Storage TemperatureRange -40℃~120℃
Power supply 15~30VDC
Output signal 4~20mA 0~10/20mA 0/1~5VDC
Pressure port M20×1.5 or customize
material 1Cr18Ni9Ti stainless steel
Diaphragm material 316L
O-ring Fluororubber
Electrical housing Cast aluminium alloy(2088housing)
Insulation resistance 100MΩ,100VDC
Protection IP65

Detailed Images:

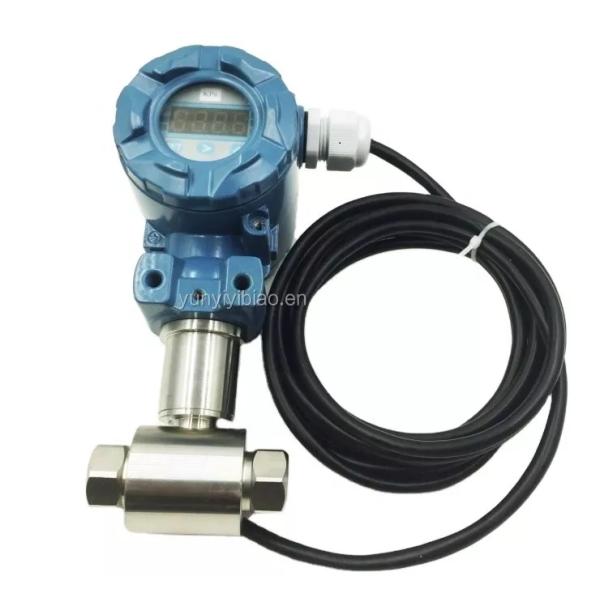

Stainless Steel Differential Pressure Gauge Digital Display For Water 4 20mA

Stainless Steel Differential Pressure Gauge Digital Display For Water 4 20mA

Features:

Wide range, cast aluminium & explosion-proof housing,
various pressure port
Various output signal, scene adjustable
Multiple protect, strong anti-interference capability.
Marking: ExiaIICT6.

Selection Guide:

2088XX
Pressure range -0.1. . .0~0.01...100MPa
(0-X)KP Or MPa X:Measurement range
Code Power supply
D1 24VDC
D2 5VDC
D3 Others
Code Output signal
S1 4~20mADC S5 0~20mADC
S2 1~5VDC S6 0~10VDC
S3 0~5VDC S7 0.5~4.5VDC
S4 0~10mADC
Code Pressure Port
J1 M20×1.5 male
J2 G1/2 male
J3 G1/4 male
J4 7/16-20UNF Female
J5 Others(such as 50.4flange)
Code Electrical connection
B1 Big Din
B2 PG7 PIN
B3 Cable with 1.5 meter
B4 2088 industry housing
B5 2088 housing with LED
B6 others
Code Pressure type
G Gauge
A Absolute pressure
S Sealed pressure

FAQ

Q: How long will you reply me?
A: We will contact you as soon as possible but within 12 hours.

Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q: How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?
A: ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q: Could I visit your factory?
A: Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?
A: We offer 12 months warranty time.

Q: Can you provide OEM & Customized service?
A: Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
