YFP 25 (-1~25Bar) Pneumatic pressure YFP series pressure hand test pump calibrator Pressure Gauge Calibrator

Name: YFP 25 125Bar Pneumatic pressure YFP series pressure hand test pump calibrator Pressure Gauge Calibrator
Brand: Yunyi
Price: 353 USD

Quality YFP 25 (-1~25Bar) Pneumatic pressure YFP series pressure hand test pump calibrator Pressure Gauge Calibrator for sale

Brand Name : Yunyi

Model Number : YFP Series

Certification : CE

Place of Origin : China

MOQ : 1

Price : 353 $

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100pcs per month

Delivery Time : 5~8 working days

Packaging Details : Standard export package

Pressure Range : (-1~25Bar)

Working Temperature : 0~40C

Gauge Connector : 1/4npt

soft pipe connector : 1/2NPT

Contact Now

handheld pressure calibrator

Description YFP25 Pneumatic Pressure handheld pressure calibrator

Hand-Held Pressure Calibrator Pumps is a portable pressure pump.For field installation of instrument calibration in the industrial process and control of indoor use all kinds of pressure gauges.Can also provide pressure source correction table for pressure measuring instrument manufacturer.All kinds of pressure transmitter within every 60 M pa,Pressure sensor and all kinds of pressure gauges Check all available hand pressure pump.

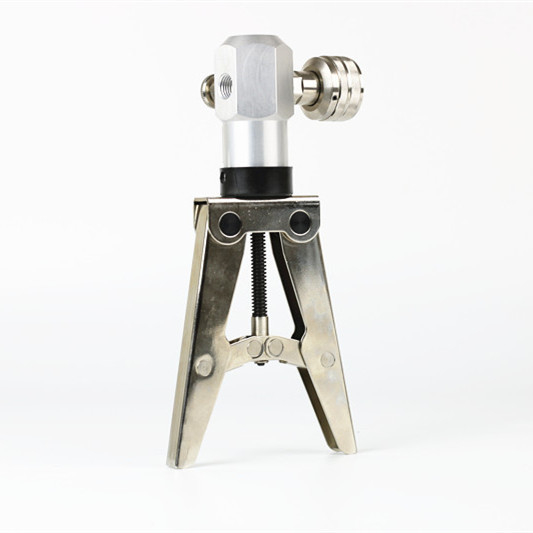

Detailed Images handheld pressure calibrator

YFP 25 (-1~25Bar) Pneumatic pressure YFP series pressure hand test pump calibrator Pressure Gauge Calibrator

Specification Hydraulic handheld pressure calibrator

output pressure range	Y039: 0-1.6MPa Y061: -0.1-0MPa Y060: -25MPa YFP-16: -0.088~1.6MPa(-0.88~16bar) YFP-20: -0.088~2.0MPa(-0.88~20bar) YFP-25: -0.088~2.5MPa(-0.88~25bar)
operating temperature	-20~50C
operating relative humidity	~100%
flexible hose connector	M20*1.5 female
master gage connector	1/4NPT male
dimensions	235×120×65 230 x 110 x 60
weight	0.6kg 0.5kg
Accessories	500 mm long plastic hose and a leatherette carrying bag
Outlet threads	1/4 NPT, or to custom request
Vernier-adjuster	micro-adjustable, volume control

Features Hydraulic handheld pressure calibrator

1.Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing
,Meter connector connect pressure gauge .
2.Hand pressure pump is the handle, the piston rod. Through gas, pump cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.

Selection Guide Hydraulic handheld pressure calibrator

YFP-16: -0.088~1.6MPa

Stability: 0.05%

Type: Pneumatic pressure

YFP-20: -0.088~2.0MPa

Stability: 0.05%

Type: Pneumatic pressure

YFP-25: -0.088~2.5MPa

Stability: 0.05%

Type: Pneumatic pressure

Y039: 0~1.6MPa

Stability: 0.05%

Type: Pneumatic pressure

Y060: 0~25MPa

Stability: 0.05%

Type: Hydraulic pressure

Y061: -0.08~0MPa

Stability: 0.05%

Type: Pneumatic pressure
