Description Guided Wave Horn Radar Level Sensor Transmitter For Water
Guided Wave Radar is the kind of measuring instrument that is based on the principle of TDR(Time domainreflectometry). The radar wave travels at the speed of light, and its running time can be converted into a level signal by the electronic components. The probe emits high-frequency pulses which spread along the cable, and the pulses are reflected back when they encounter the material surface and received by the receiver inside the meter. The distance signal is then converted to the level signal.

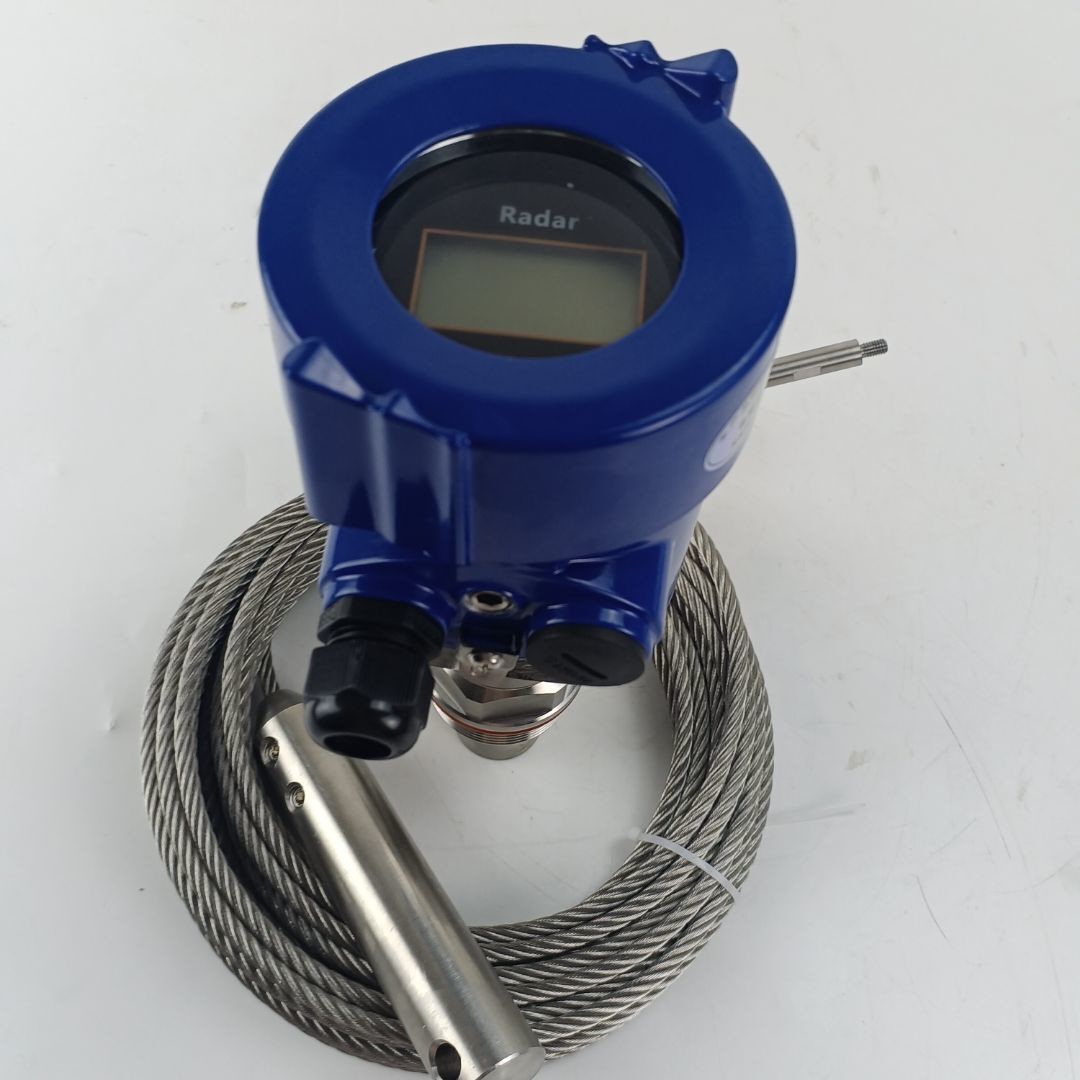

Detailed Images Guided Wave Horn Radar Level Sensor Transmitter For Water
Specification Guided Wave Horn Radar Level Sensor Transmitter For Water
| Application: | Various liquids, solid |
| Measure range: | 30 m |
| Process connection: | Thread,flange |
| Medium temperature: | -40～120℃ |
| Process pressure: | -0.1～3MPa |
| Accuracy: | ±1mm |
| Frequency: | 1.8GHz |
| Explosion-proof: | Exib ⅡC T6 |
| Protection: | IP 67 |
| Output signal: | 4...20mA/HART (two lines/four lines)/ RS485/Mod bus |
Applications Guided Wave Horn Radar Level Sensor Transmitter For Water
Power plant: coal pile, the original coal bunker, fuel tanks, reservoirs, waste gas purification tank, warehouse pumps, ash library, fuel tanks, etc.
Oil field: crude oil or refined oil storage tank, three - phase separator, settling tank, sewage tank and oil - water interface, drilling mud tank;
Chemical: crude oil distillation tower, raw materials and intermediate silos, reaction tanks, ammonia tanks, solid silos, separators, etc .;
Metallurgical: ore silo, ore grinder, raw materials warehouse, auxiliary materials warehouse, blast furnace, alumina powder warehouse, electrolytic tank buffer tank;
Cement: stone warehouse, raw silo, cement warehouse, coal warehouse, slag storage bin;
Water treatment: reservoirs, sewage tanks, water treatment tanks, sedimentation tanks, deep wells, drinking water networks;
Paper: raw materials warehouse, storage tower, drying drum, chemical materials storage warehouse, etc.
Other: quarry, food, pharmaceutical, environmental protection, shipbuilding and other industries;
